Regarding trading symbol of Crude Oil Mini

1

Dear Sir,

I want to trade in Crude Oil Mini. For Crude Oil the symbol CRUDEOIL is working for DhanTradeHull, but for Crude Oil Mini, CRUDEOILM is not working. Wile for data = tsl.get_ltp_data(names=[‘CRUDEOILM OCT FUT’]) “CRUDEOILM OCT FUT” working but for CE_symbol_name, PE_symbol_name, strike = tsl.ATM_Strike_Selection(Underlying=‘CRUDEOILM OCT FUT’, Expiry=0), CRUDEOILM OCT FUT is not working. Kindly provide me the correct symbol and Name for different purposes, which will be helpful for me.

Thanking You,

Warm Regards

Alok Ranjan

2

HI @Alok_Ranjan ,

We have updated the Dhan-Tradehull .

Do run the below commands in cmd terminal-

pip install dhanhq==2.2.0
pip install Dhan-Tradehull==3.3.2

Follow the remaining steps :

Step 1: Run the following command:

pip show Dhan_tradehull

Step 2: Copy the location path shown in the output, similar to the example below:

c:\users\Test\appdata\local\programs\python\python310\lib\site-packages

Step 3: Paste the copied path into File Explorer.

Step 4: Search for the Dhan_Tradehull folder and open it.

Step 5: Locate the Dhan_Tradehull.py file and open it.

Step 6: Search for the following line (CTRL + F) will find the dictionary:

self.commodity_step_dict = {'GOLD': 100,'SILVER': 250,'CRUDEOIL': 50,'NATURALGAS': 5,'COPPER': 5,'NICKEL': 10,'ZINC': 2.5,'LEAD': 1, 'ALUMINIUM': 1,    'COTTON': 100,     'MENTHAOIL': 10,   'GOLDM': 50,       'GOLDPETAL': 5,    'GOLDGUINEA': 10,  'SILVERM': 250,     'SILVERMIC': 10,   'BRASS': 5,        'CASTORSEED': 100, 'COTTONSEEDOILCAKE''CARDAMOM': 50,    'RBDPALMOLEIN': 10,'CRUDEPALMOIL': 10,'PEPPER': 100,     'JEERA': 100,      'SOYABEAN': 50,    'SOYAOIL': 10,     'TURMERIC': 100,   'GUARGUM': 100,    'GUARSEED': 100,   'CHANA': 50,       'MUSTARDSEED': 50, 'BARLEY': 50,      'SUGARM': 50,      'WHEAT': 50,       'MAIZE': 50,       'PADDY': 50,       'BAJRA': 50,       'JUTE': 50,        'RUBBER': 100,     'COFFEE': 50,      'COPRA': 50,       'SESAMESEED': 50,  'TEA': 100,        'KAPAS': 100,      'BARLEYFEED': 50,  'RAPESEED': 50,    'LINSEED': 50,     'SUNFLOWER': 50,   'CORIANDER': 50,   'CUMINSEED': 100   }

Step 7: Replace the following line and save the file to use the NATURALGASMINI data(CTRL +S):

self.commodity_step_dict = {'GOLD': 100,'SILVER': 250,'CRUDEOIL': 50,'CRUDEOILM': 50,'NATURALGAS': 5,'NATGASMINI' : 5 ,'COPPER': 5,'NICKEL': 10,'ZINC': 2.5,'LEAD': 1, 'ALUMINIUM': 1,    'COTTON': 100,     'MENTHAOIL': 10,   'GOLDM': 50,       'GOLDPETAL': 5,    'GOLDGUINEA': 10,  'SILVERM': 250,     'SILVERMIC': 10,   'BRASS': 5,        'CASTORSEED': 100, 'COTTONSEEDOILCAKE''CARDAMOM': 50,    'RBDPALMOLEIN': 10,'CRUDEPALMOIL': 10,'PEPPER': 100,     'JEERA': 100,      'SOYABEAN': 50,    'SOYAOIL': 10,     'TURMERIC': 100,   'GUARGUM': 100,    'GUARSEED': 100,   'CHANA': 50,       'MUSTARDSEED': 50, 'BARLEY': 50,      'SUGARM': 50,      'WHEAT': 50,       'MAIZE': 50,       'PADDY': 50,       'BAJRA': 50,       'JUTE': 50,        'RUBBER': 100,     'COFFEE': 50,      'COPRA': 50,       'SESAMESEED': 50,  'TEA': 100,        'KAPAS': 100,      'BARLEYFEED': 50,  'RAPESEED': 50,    'LINSEED': 50,     'SUNFLOWER': 50,   'CORIANDER': 50,   'CUMINSEED': 100   }

After these steps refer the code provided below -

Refer the code -

from Dhan_Tradehull import Tradehull

client_code = ""
tsl = Tradehull(client_code, mode="pin_totp", pin="", totp_secret="")

ce_strike, pe_strike, strike = tsl.ATM_Strike_Selection('CRUDEOILM',0)
print(f'CRUDEOILM : {ce_strike}, {pe_strike}, {strike}')

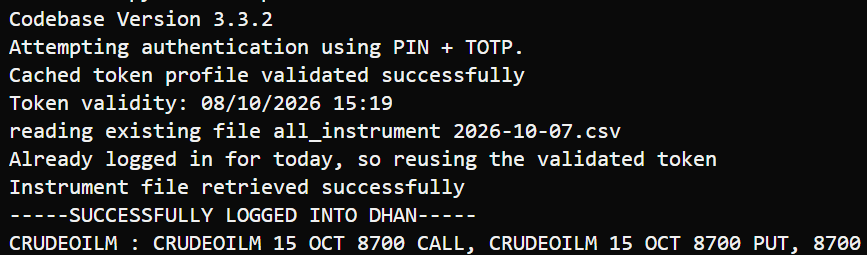

Output -
